(iOS) Run Video Chat within your Unity application 📱🎮

When playing games with your friends, the real fun comes when you can trash-talk and gloat on how good you are! Whether you are playing a first-person shooter or playing a game of poker, you want to be able to communicate with your team or see the competitors’ reactions to see if they are bluffing. More mobile games are adding real-time communication within their app to increase user stickiness and user engagement.

The Agora Video SDK for Unity enables you to add in-game real-time communications to increase interactivity between players with minimum impact on the gameplay.

A sample app is included in the Unity Asset and demonstrates the basic Agora SDK features:

  • Join a Channel
  • Leave a Channel
  • Video Chat with multiple participants

This blog post will enable you to run the sample app on an iOS device within a few minutes.


Prerequisites

– Agora.io Developer Account

– Unity 3D 5.5+

Get an Agora Developer Account & App ID

To build and run the sample application you must obtain an App ID:

1. Create a developer account at agora.io. Once you finish the signup process, you will be redirected to the Dashboard.

2. Navigate in the Dashboard tree on the left to Projects > Project List.

3. Copy the App ID that you obtained from the Dashboard into a text file. You will use this when you launch the app.


Set up the Demo Application

1. Add Agora Video SDK for Unity to your assets from the Unity Asset Store.

Note: If you see a Terms of Service page, click Accept to add the project.

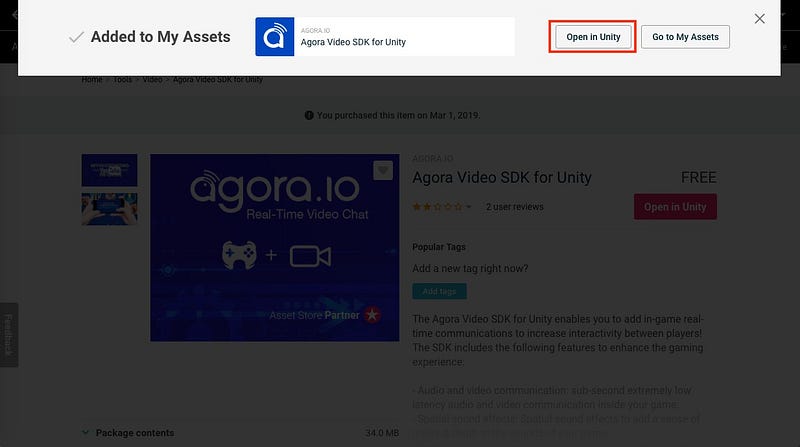

Once the project has been added, a confirmation message will appear at the top of the screen.

2. Click Open in Unity to launch Unity.

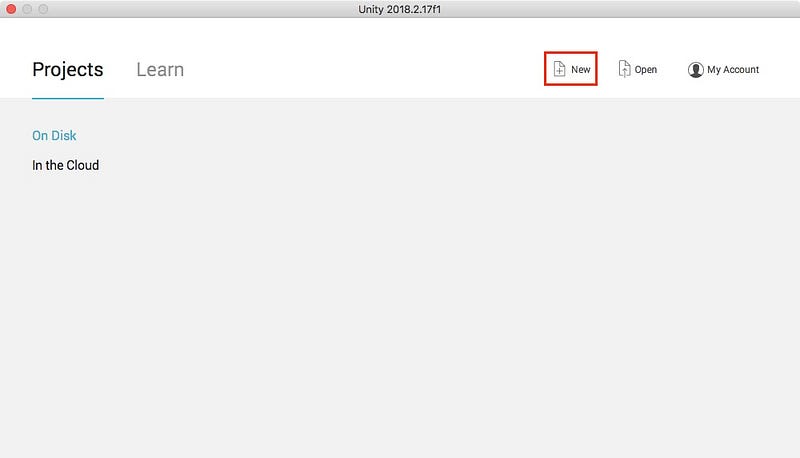

3. When Unity opens, click New to start a new project.

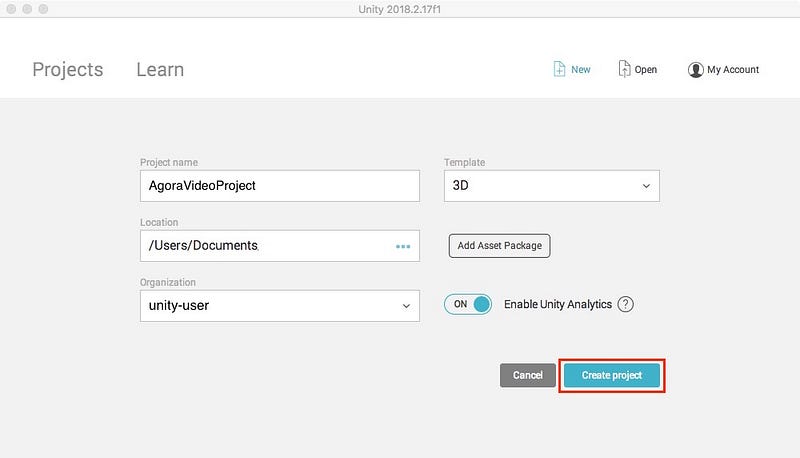

4. Click Create project to create a new project.

5. Once your project is created, ensure the Asset Store tab is selected. If the Agora Video project is not already loaded, search for Agora in the search box.

Find the Agora Video SDK for Unity project. Click the project box to open the project details.

6. Scroll down and click Download.

Note: The button changes to a loading bar to show download progress.

7. When the download is complete, the Import button will appear. Click Import to load Agora Video into your project.

8. Scroll through the asset list to familiarize yourself with the project structure and click Import to add the Agora.io assets into your current project.

Note: Depending on your version of Unity, you may see and API Update Required alert window.

Once the assets are imported, double click the TestSceneScript.cs file. In the TestSceneScript class, update YOUR APP ID with your App ID.

private string appId = “YOUR APP ID”;

Running the Sample Application

Open the Build Settings and add the TestSceneHome.unity & TestSceneHomeWorld.unity scenes to the compilation and select the compilation platform (iOS)

  1. Open the Player Settings panel deselect the Auto Graphics APIoptionWithin the Graphics APIoptions that are visible, make sure that only OpenGLES2 is on the list and remove any other APIs that appear on the list.Note: You may need to add OpenGLES2 by using the + icon)
  2. Next,deselect theMultithreaded Renderingoption.
  3. Change the Bundle Identifier to your own Bundle identifier so XCode can properly codesign the application.
  4. Ensure the microphone permission has a description to allow the user to know why the microphone is being accessed by the application
  5. Ensure the camera permission has a description to allow the user to know why the camera is being accessed by the application

6. Once all the setup is complete click Build and Run. Once XCode opens up, enable auto-signing (or sign the project) and run the sample application on your iOS test device. Note: The sample app will not run in the simulator as there is no way to access the camera and microphone on a simulator.
